This ID20 LED IR Door Sensor Switch is designed to be surface or recessed-mounted for 12V/24V LED lights in cabinets, counters, closets, and wardrobes. The cabinet lights will turn on when you open the door, and turn off when you close the door. This ID20 LED IR Door Sensor Switch is highly sensitive and easy to install.
About this item

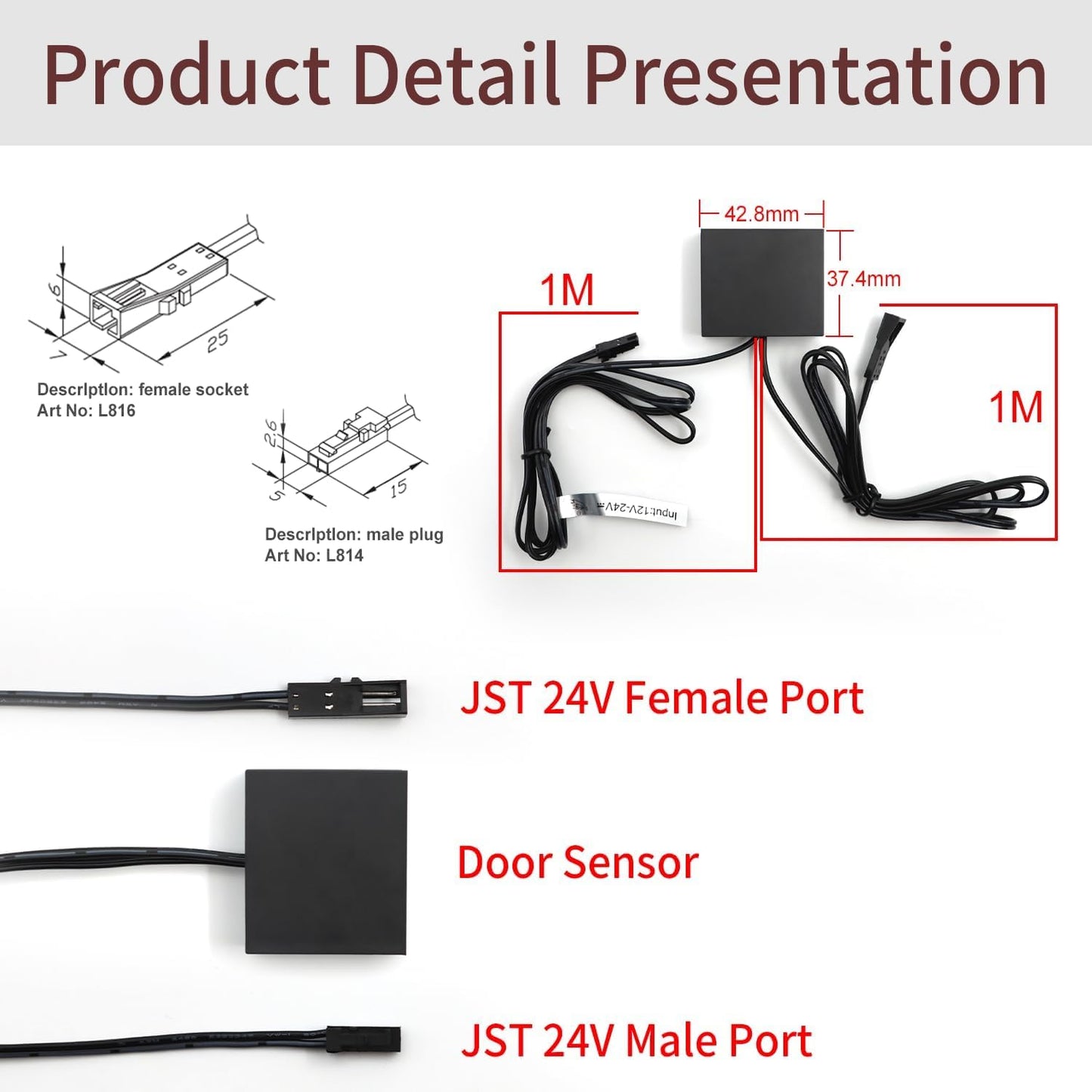

- 【Tip】The square sensor switch can both work under DC12V & 24V . But its connectors are 24V JST male and female,which cannot be connected to VST’s 12V driver. If you want to connect 12V LED lights, you need to cut the connector cables and connect them hardwired.

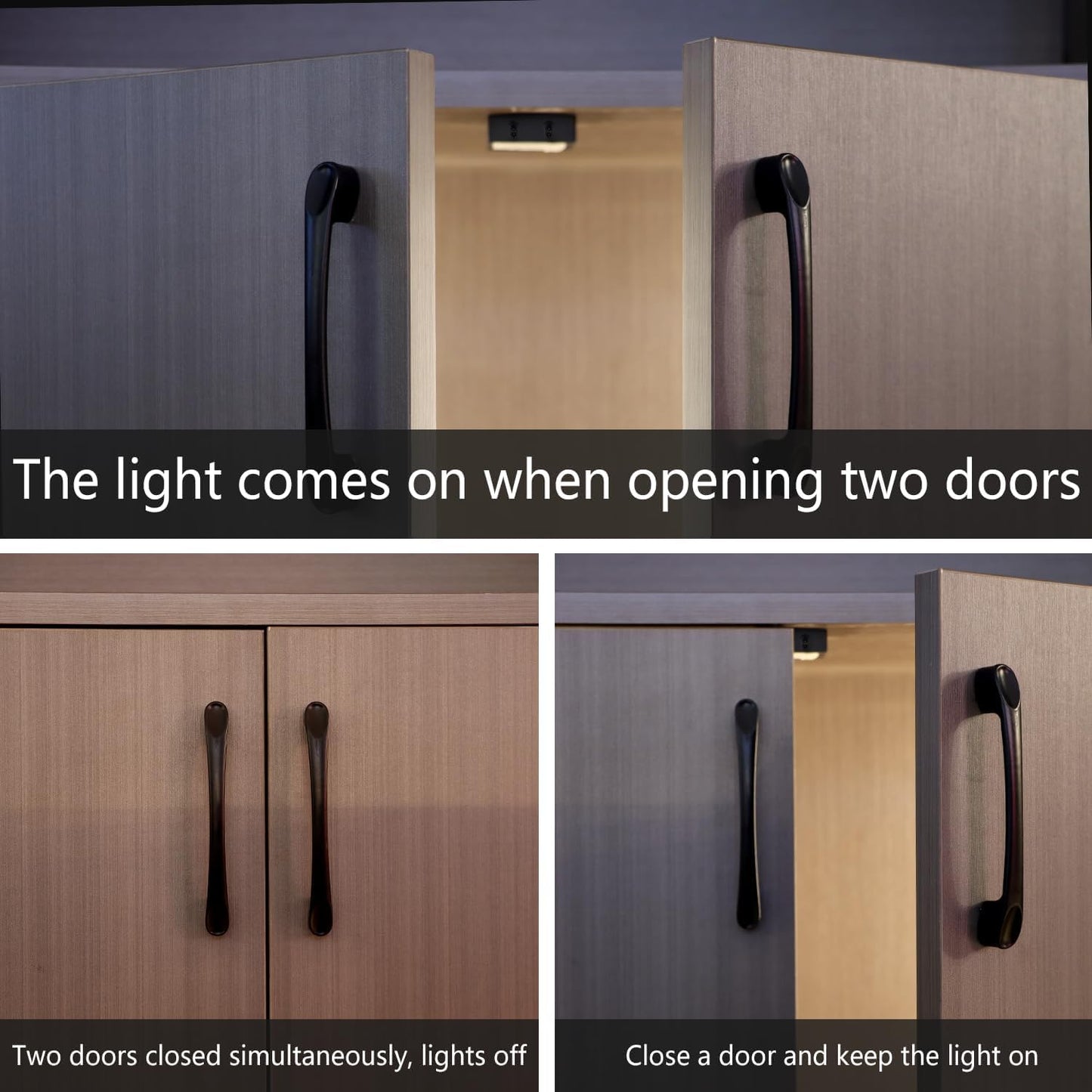

- 🌈【Smart Control】The sensor switch is triggerred by door open and close. Keep one door open or two doors open; the light is on. Both doors closed; the is off.
- 🌈【Wide Application】The door sensor switch is surface mount and easily to installation. The double door sensor is utilized to control 24VDC under cabinet, wardrob closet LED lights etc.
- 🌈【Energy Saving】 If you forget to close the door, the light will automatically turn off after one hour. A retrigger is required to work properly.

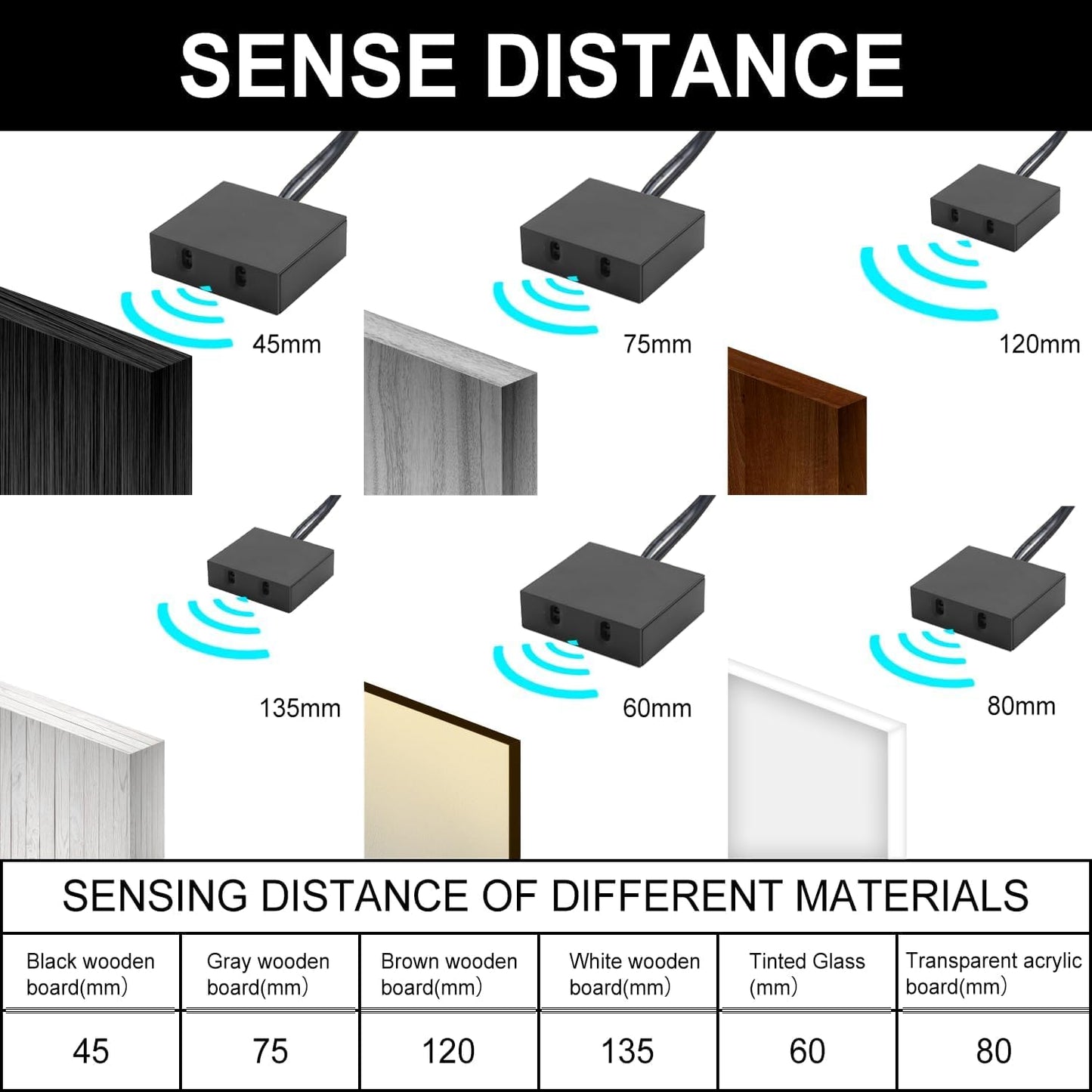

- 🌈【High Sensitivity】The sensor switch can be triggerred by wood, glass and acrylic. the maximum detective distance: Black wood: 50mm, Grey wood: 80mm, Brown Wood: 130mm, White wood: 150mm, Brown glass: 60mm, Clear acrylic: 80mm.
- 🌈【Warranty】VST lighting provide 2-years quality assurance Please contact our customer service team when you encounter any trouble in installation and application.we commit to satisfying our customers 100%.
Are you still looking for a Door Sensor Switch ?

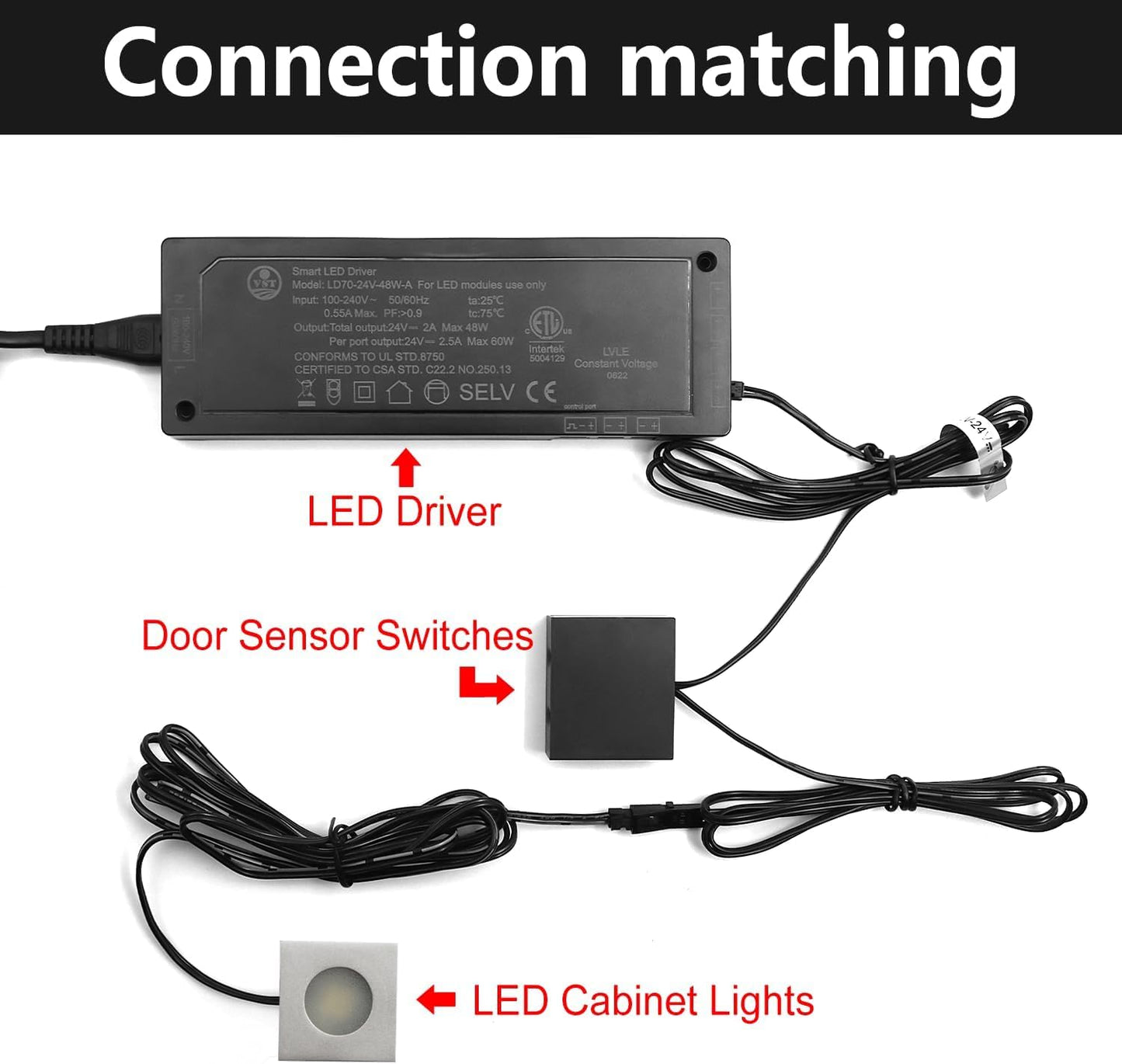

This is the updated door sensor switch. You can connect the sensor with power supply and 12V DC LED lights to show you the most convenient performance.When the door is opened, the light will automatically turn on, and when the door is closed, the light will automatically turn off.
Features:
1. Surface or recessed mounting; easy to install.
2. Energy-efficiency
3. High quality
Specifications:
| Model Number | ID20 | Size | 42.8*37.4*13mm |
| Application | cabinet lights, LED lights | ||
| Brand Name | VST | Material | ABS+ Plastic |
| Type | Door sensor switch | Installation | surfaced/Recessed Mounted |
| Rated voltage | 12V/24V | Color | Black |
| Product name | Door Activated Switch | Usage | Furniture light control |
| Power | 12V-30W/24V-60W | Application | cabinet lights, LED lights |
| Warranty | 3 Years | Working Hours | 30000 |
| sensor head | 15MM(D)*12MM(H) | control box | 88mm*15mm*10mm |

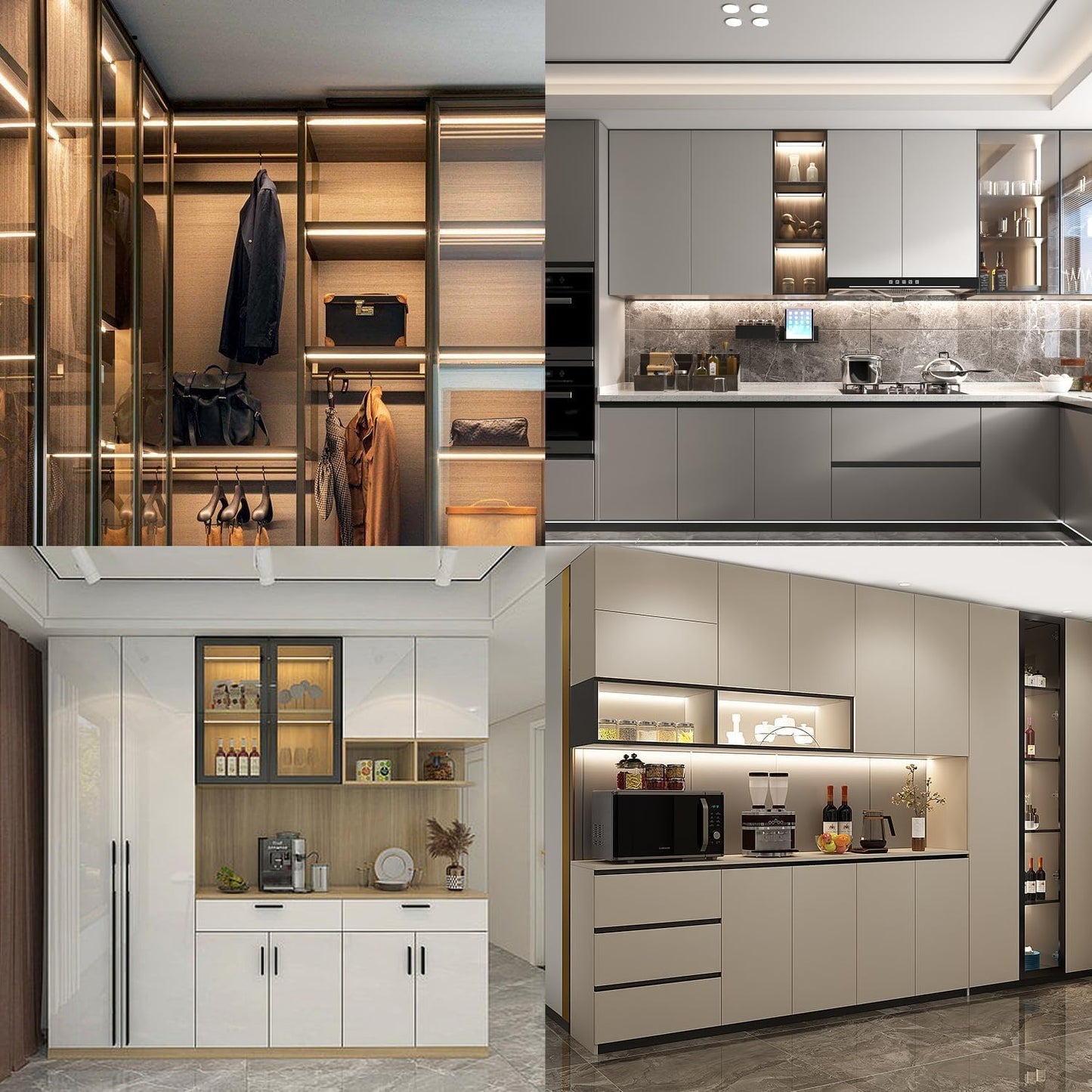

Wide Applications: Cabinet, wardrope, and any cabinet furniture with doors
