PR02 12V/24V Movement Activated Light Switch 30W Home Automation Light Switches with RoHS CE EMC for Home Illumination

PR02 12V/24V Movement Activated Light Switch 30W Home Automation Light Switches with RoHS CE EMC for Home Illumination

Sensor Switch Type
Mount
Voltage

Looking for smart under cabinet lighting solutions? Fill the following form. Send message to Get A Free Quote.

Contact form

View full details

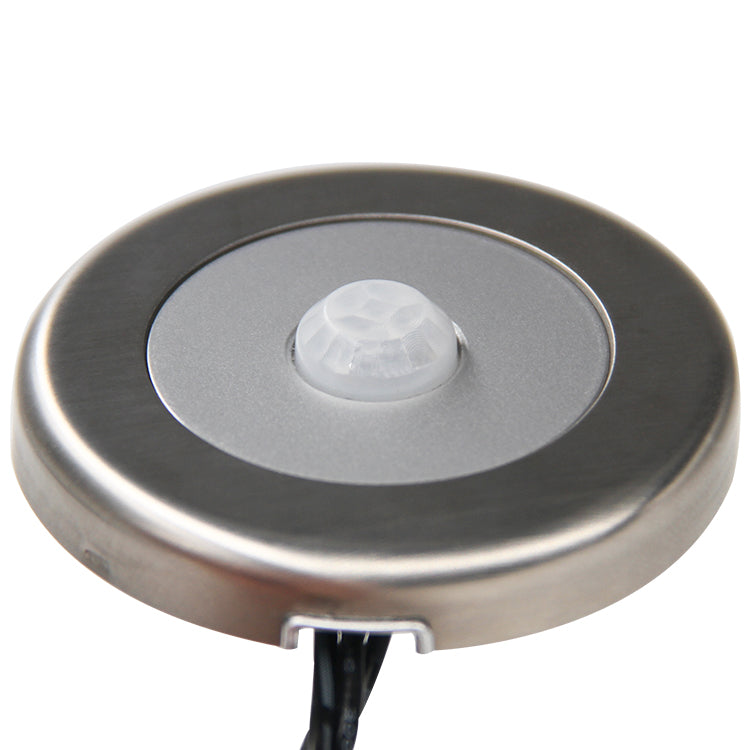

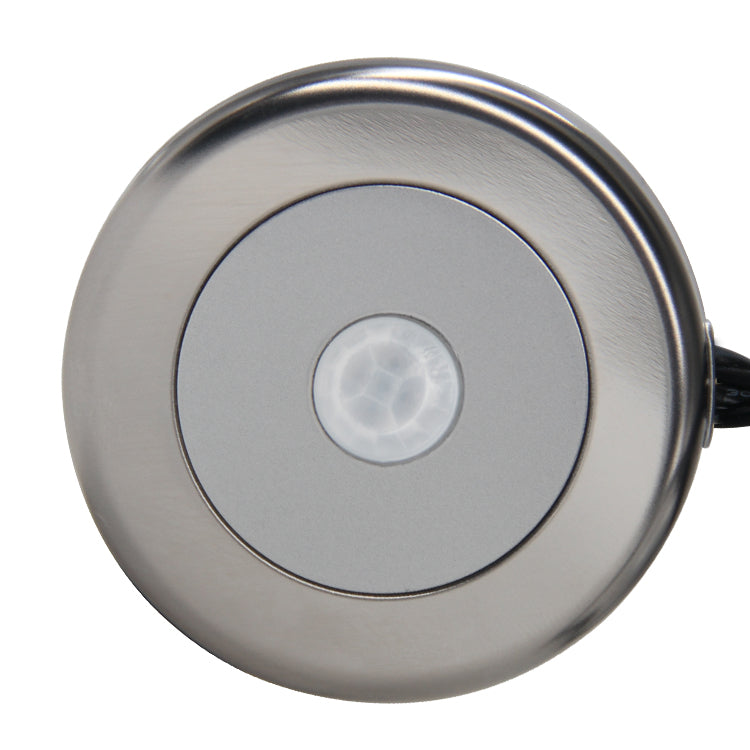

This PR02 Movement Activated Light Switch is designed to be surface-mounted for 12V or 24V LED lights in cabinets, counters, closets, and wardrobes. With a PIR motion infrared detection controller, this switch uses infrared detection to control the load switch, allowing for automatic on-off operation of LED lights. This PR02 Movement Activated Light Switch is mini and compact for easy installation without destroying home decor.

About this item

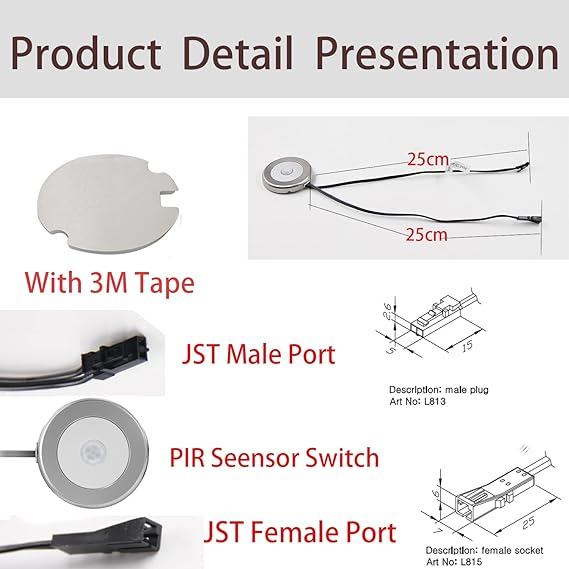

  • 💁‍♀️【Tip】The switch can both work for the 12V & 24V lights. But the connetor is 12V JST male and female,which cannot be connected to VST’s 24V driver.If you want to connect 24V's light,you have to cut the connector and connect it by hardwire. Above is the professional operation; non-professionals are not recommended to try.
  • 🏳️‍🌈【PIR Sensor】PIR Motion infrared detection controller, which uses infrared detection to control the load switch. When a moving object enters the field of view, the sensor light switch is activated and can be turned off after 30 seconds after the movement stops.
  • 🏳️‍🌈【High Sensitivity】PIR sensing has an effective motion detector range of 9.84 feet, and the PIR dome lens has a nominal 120-degree field of view.
  • 🏳️‍🌈【Wide Application】Widely used in motion-activated lighting, LED strip security systems, automatic sensory devices, and more.
  • 🏳️‍🌈【Safe and Delicate】Low power consumption. Mini and compact so as to put it without destroying home decoration.
  • 🏳️‍🌈【Reliable After-sales Service】We provide a 2-year warranty and after-sales service. if you have any questions, please contact us first, and we will try our best to help you.
  •

    Are you still looking for a PIR sensor switch ?

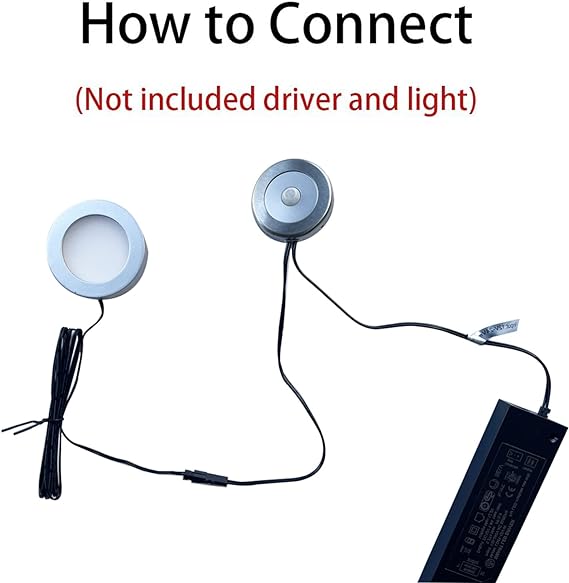

    This is the updated PIR sensor Switch. You can connect the sensor with power supply and 12V DC LED lights to show you the most conveninet performance. When you walk into the sensing distance, the light will automatically turn on, and when you leave the sensing distance, it will automatically turn off after 30 seconds.

     Features:

    1. Easy installation

    2. PIR Sensor Switch of LED Light

    3. Surface mounted

    8

    6

    =

    Sophisticated Look

    Bright silver

    It can be connected to most led lighting products and other low voltage lamps, suitable for a variety of cabinets, bookcases, showcases, etc.

    Secification

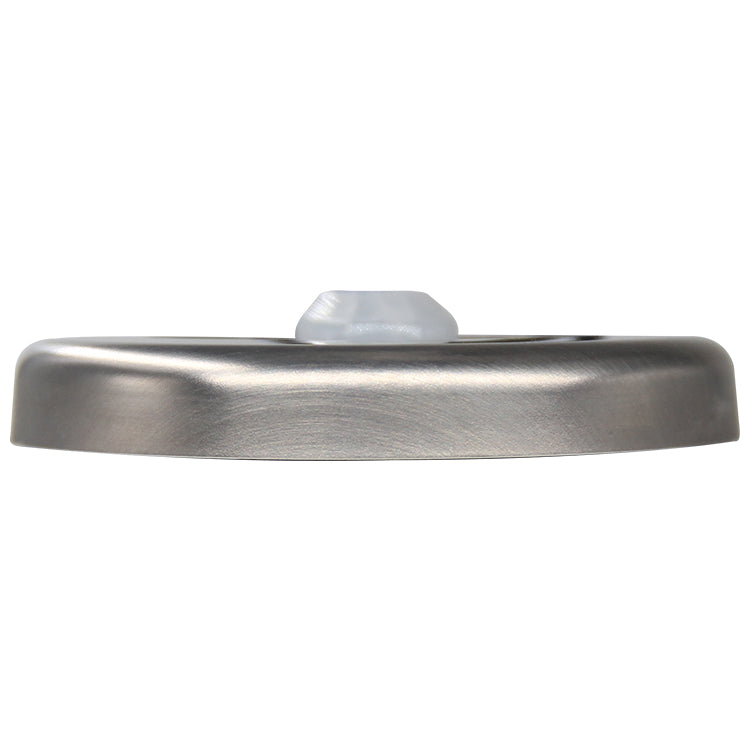

    Dimension:Ø 55mm*8mm

    Switch Type: PIR motion sensor

    Operateing Voltage:12/24V

    Rated current: 3A

    Rated Power: Max 30W for 12VDC

    Max 60W for 24VDC.

    High Sensitivity

    PIR infrared induction, convenient and hands-free, when the person approaches, it will light up, and it will automatically turn off after the person leaves the sensing distance for 30s.



    Specifications:

    Model Number PR02 Size DIA55*8mm
    Place of Origin Guangdong, China Application led lights
    Brand Name VST Material ABS+ Plastic
    Theory PIR Sensor Installation Surface Mounted
    Output 12V/24V Color Silver
    Product name Hand Wave Sensor Switch Voltage 12V/24V
    Power 30W/60W Application cabinet lights, LED lights
    Warranty 3 Years Max Curretn
    3A
    Distance Max 3M



    Wide Applications

    • Home, office
    • Furniture
    • Mirror light
    • LED display cabinet, kitchen cabinet, wardrobe, bookshelf, etc.

    1
